Choosing the right CNC machine can make a world of difference in your manufacturing projects. If you’re torn between a 4-axis and a 5-axis CNC machine, you’re not alone. Both have their unique strengths and applications, and the decision largely depends on what you need for your specific project. Understanding the differences between these machines is crucial for optimizing your production processes, whether you’re working on simple parts or complex components.

In this article, we’ll break down the differences, advantages, and ideal uses for 4 axis vs 5 axis CNC machines. By the end, you’ll have a clear understanding of which machine is the best fit for your needs, ensuring you make an informed decision that aligns with your project goals.

Understanding CNC Machines

CNC (Computer Numerical Control) machines are automated tools that use computer programming to control the movement and operation of various machining tools. These machines are capable of producing highly precise and complex parts, making them indispensable in modern manufacturing. The basic components of a CNC machine include a computer, controller, drive system, and the cutting tool itself. The computer program sends instructions to the controller, which then directs the drive system to move the cutting tool in specific ways to shape the material.

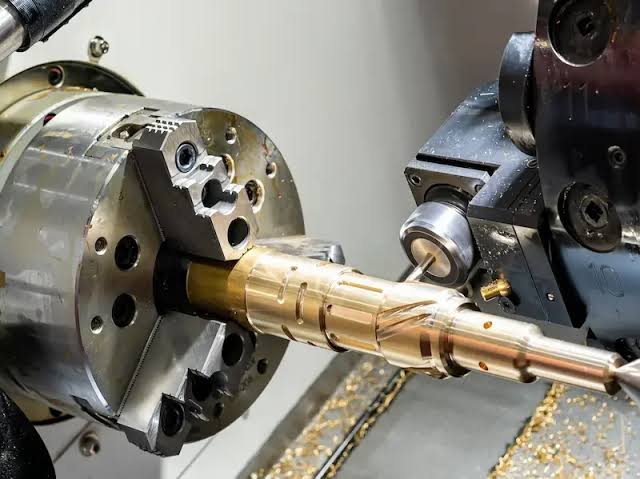

What is a 4 Axis CNC Machine?

A 4-axis CNC machine is an advanced type of CNC machine that adds an extra rotational axis to the traditional 3-axis system. In addition to moving along the X, Y, and Z axes, the 4-axis CNC machine includes a fourth axis, typically denoted as the A-axis. This additional axis allows the cutting tool to rotate around the X-axis, enabling more complex and intricate machining tasks.

With this extra movement capability, 4-axis CNC machines are ideal for creating parts with complex geometries, such as helical shapes and angled features. They are commonly used in industries like automotive, aerospace, and furniture manufacturing, where precision and detail are critical. The ability to perform continuous cutting and milling on multiple faces of a part without manual repositioning significantly enhances efficiency and accuracy.

Advantages

• Increased flexibility: The additional rotational axis (A-axis) allows for more complex geometries and detailed features compared to traditional 3-axis machines. This flexibility is crucial for producing parts with angled cuts and helical shapes.
• Enhanced efficiency: By enabling continuous machining on multiple faces of a part without manual repositioning, 4-axis CNC machines can significantly reduce production time and improve workflow efficiency.
• Cost-effective: While more advanced than 3-axis machines, 4-axis CNC machines are generally more affordable than 5-axis machines, making them a cost-effective option for businesses that need moderate complexity without the higher investment of 5-axis systems.
• Wide range of applications: These machines are versatile and can be used in various industries, including automotive, aerospace, and furniture manufacturing, where precision and detail are essential.

Disadvantages

• Limited complexity: While 4-axis machines are capable of more complex tasks than 3-axis machines, they still fall short of the capabilities offered by 5-axis machines, especially for parts requiring intricate and multi-angled features.
• Setup time: Although reduced compared to 3-axis machines, 4-axis machines still require more setups and adjustments than 5-axis machines, which can affect overall efficiency for highly complex projects.
• Initial learning curve: Operating a 4-axis CNC machine requires a certain level of expertise and training, which can be a barrier for businesses new to CNC technology or those with limited technical resources.

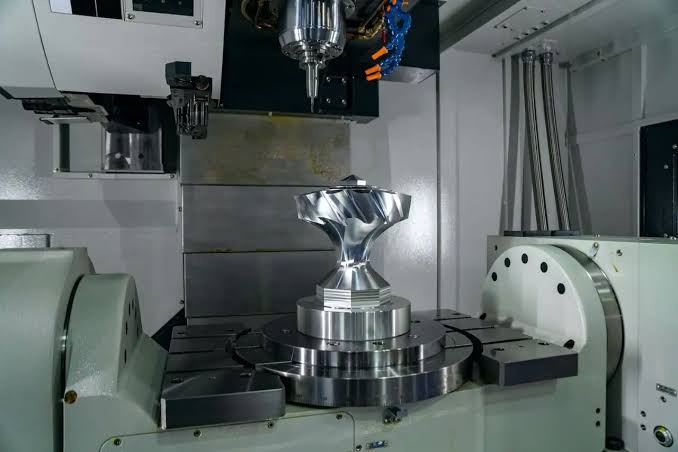

What is a 5 Axis CNC Machine?

A 5-axis CNC machine takes the capabilities of a 4-axis machine to the next level by adding two additional rotational axes. Besides moving along the X, Y, and Z axes and the rotational A-axis, a 5-axis machine includes the B-axis and sometimes the C-axis. These extra axes allow the cutting tool to approach the workpiece from virtually any direction, providing unmatched flexibility and precision.

With a 5-axis CNC machine, you can create highly complex and detailed parts with ease. This capability is particularly beneficial for industries like aerospace, medical devices, and intricate mold making, where precision and complexity are paramount. The 5-axis machine can perform intricate cuts and create detailed features without needing multiple setups, reducing the risk of errors and significantly improving efficiency.

Advantages

• Unmatched precision and flexibility: The addition of two extra rotational axes (B and sometimes C) allows for intricate and precise machining from virtually any angle. This capability is essential for producing complex parts with detailed features and tight tolerances.
• Reduced setup time: 5-axis machines can perform multiple cuts on different faces of a part without needing manual repositioning. This continuous machining process significantly reduces setup time and enhances overall production efficiency.
• Advanced capabilities: These machines are ideal for industries that require extreme precision, such as aerospace, medical devices, and intricate mold making. They can handle the most challenging and detailed machining tasks, ensuring high-quality outcomes.
• Improved surface finish: The ability to approach the workpiece from various angles results in a better surface finish, reducing the need for additional finishing processes and saving time.

Disadvantages

• Higher cost: The advanced technology and additional components in 5-axis CNC machines make them more expensive than 4-axis machines. The initial investment and maintenance costs can be significant, which may not be justified for less complex projects.
• Complex operation: Operating a 5-axis CNC machine requires a high level of expertise and training. The complexity of programming and setup can be challenging for operators, necessitating specialized knowledge and skills.
• Increased maintenance: With more moving parts and sophisticated technology, 5-axis machines may require more frequent maintenance and calibration to ensure optimal performance, leading to higher maintenance costs.

Key Differences Between 4 Axis and 5 Axis CNC Machines

When deciding between a 4-axis and a 5-axis CNC machine, it’s essential to understand the key differences that can impact your projects. Here are the main factors to consider:

1. Range of motion

A 4-axis CNC machine adds an extra rotational axis to the basic three axes (X, Y, Z), allowing the cutting tool to rotate around the X-axis. This additional motion helps create more complex shapes and features. In contrast, a 5-axis CNC machine adds two more rotational axes (B and sometimes C), providing even greater flexibility and the ability to approach the workpiece from virtually any angle.

2. Complexity of parts

4-axis CNC machines are well-suited for producing parts with moderate complexity, such as helical shapes and angled features. They are ideal for industries where precision and intricate designs are essential but not extremely complex. On the other hand, 5-axis CNC machines excel in creating highly complex and detailed parts, making them perfect for aerospace, medical devices, and other industries requiring extreme precision.

3. Speed and efficacy

Both 4-axis and 5-axis machines can enhance efficiency by reducing the need for manual repositioning of the workpiece. However, 5-axis machines take this a step further by allowing for continuous cutting on all faces of the part, minimizing setup times and increasing overall production speed. This advantage makes 5-axis machines more efficient for high-volume, complex tasks.

4. Cost

Generally, 5-axis CNC machines are more expensive than their 4-axis counterparts due to their advanced capabilities and additional components. The initial investment for a 5-axis machine is higher, but the increased efficiency and ability to produce more complex parts can justify the cost for many industries. If your projects don’t require such high complexity, a 4-axis machine might be a more cost-effective choice.

4 Axis CNC vs 5 Axis CNC: Which One is Better?

Choosing between a 4-axis and a 5-axis CNC machine depends on several factors specific to your project requirements. Here are some key considerations to help you make the right decision:

1. Assessing your project requirements

First, consider the complexity and precision needed for your parts. If your projects involve intricate designs with multiple angles and require high precision, a 5-axis CNC machine may be the better choice. However, if your parts are moderately complex and don’t need the extensive capabilities of a 5-axis machine, a 4-axis CNC machine can be more than sufficient.

2. Budget considerations

Budget is a crucial factor in deciding which CNC machine to choose. 5-axis machines are generally more expensive due to their advanced features and capabilities. If your budget allows and your projects require high complexity, investing in a 5-axis machine could be worthwhile. However, for less complex projects or if budget constraints are a concern, a 4-axis machine offers a good balance between capability and cost.

3. Long-term goals and scalability

Think about your long-term goals and the scalability of your operations. If you anticipate taking on more complex projects in the future or expanding your manufacturing capabilities, investing in a 5-axis CNC machine could be a strategic move. On the other hand, if your primary focus will remain on moderately complex parts, a 4-axis machine may be a better fit for sustained operations without the higher initial investment.

4. Production volume

Consider the volume of parts you need to produce. 5-axis machines are typically more efficient for high-volume production of complex parts, reducing setup times and increasing throughput. If you frequently produce large quantities of parts, the increased efficiency of a 5-axis machine can justify the higher cost. For smaller production runs or prototypes, a 4-axis machine may offer adequate capability and cost savings.

5. Ease of use and expertise

Evaluate the technical expertise of your team. 5-axis machines require advanced programming skills and a higher level of operator expertise. If your team is not yet experienced with such complex machinery, the learning curve and training costs should be considered. A 4-axis machine might be easier to integrate into your current operations if you have limited technical resources.

Conclusion

Choosing between a 4-axis and a 5-axis CNC machine depends on your specific needs, project complexity, budget, and future goals. 4-axis CNC machines offer a cost-effective solution for moderately complex parts and are easier to operate. In contrast, 5-axis CNC machines provide unmatched precision and flexibility, ideal for highly complex and demanding projects. By evaluating your requirements and considering the factors discussed, you can select the CNC machine that best suits your manufacturing needs and ensures the success of your projects.
